DuckVEP and vep-rs

This is one sites-only HG002 v4.2.1 GRCh38 run: 4,070,522 alleles, Ensembl 116 annotations, and one ALT allele per record. The tools are compared as (allele, transcript, sorted consequence terms) on transcripts both emit. DuckVEP writes its rich typed result to Parquet; vep-rs 0.3.1 writes VEP tab text. Ensembl VEP 116 adjudicates the sites where their tuples differ.

Paired single-core timings

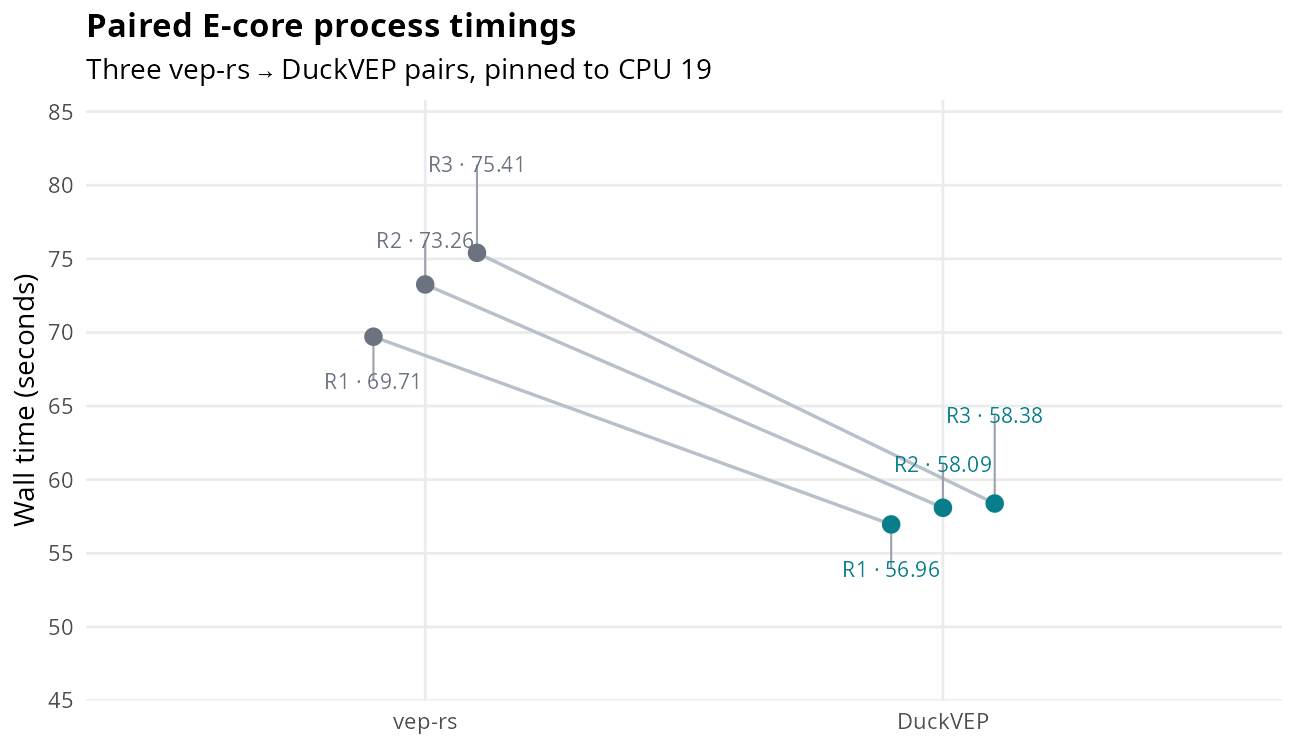

Three cold-process pairs ran sequentially on CPU 19, an i5-13500 E-core. Each dot is one process measurement; connecting lines pair the repetitions.

Wall time per process. The shared host was busy and output storage was disk-backed; these measurements describe this run.

Wall time per process. The shared host was busy and output storage was disk-backed; these measurements describe this run.

Query variants and transcript counts

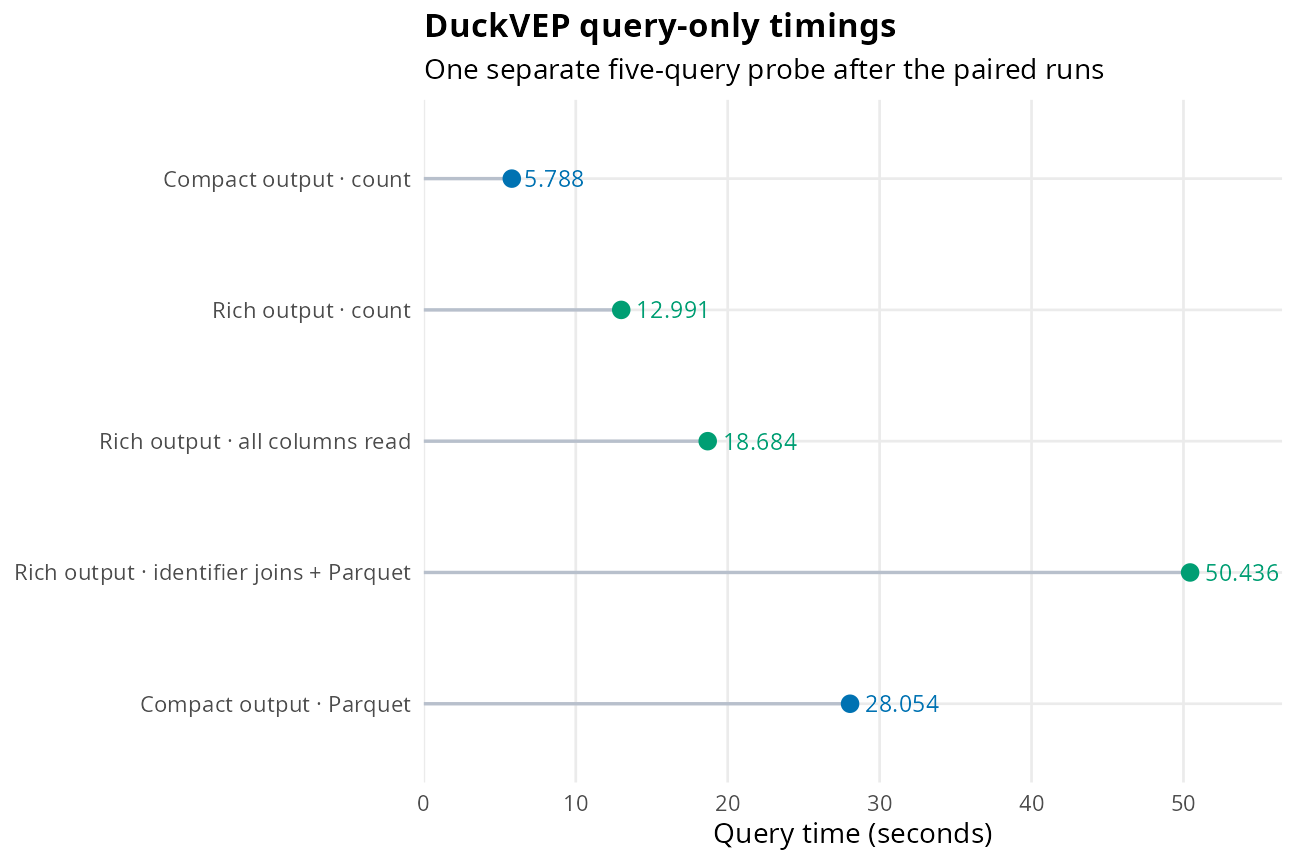

The separate query-only probe times five complete query variants. Points are individual measured durations, not additive components.

Each point is a separately timed query variant; extension setup and model restore are outside these timers. The values are not additive.

Each point is a separately timed query variant; extension setup and model restore are outside these timers. The values are not additive.

The comparison contains 34,148,222 tuples per tool on 420,436 shared transcripts; 34,146,531 tuples match (99.995%). VEP 116 ran on the 1,291 sites with differences.

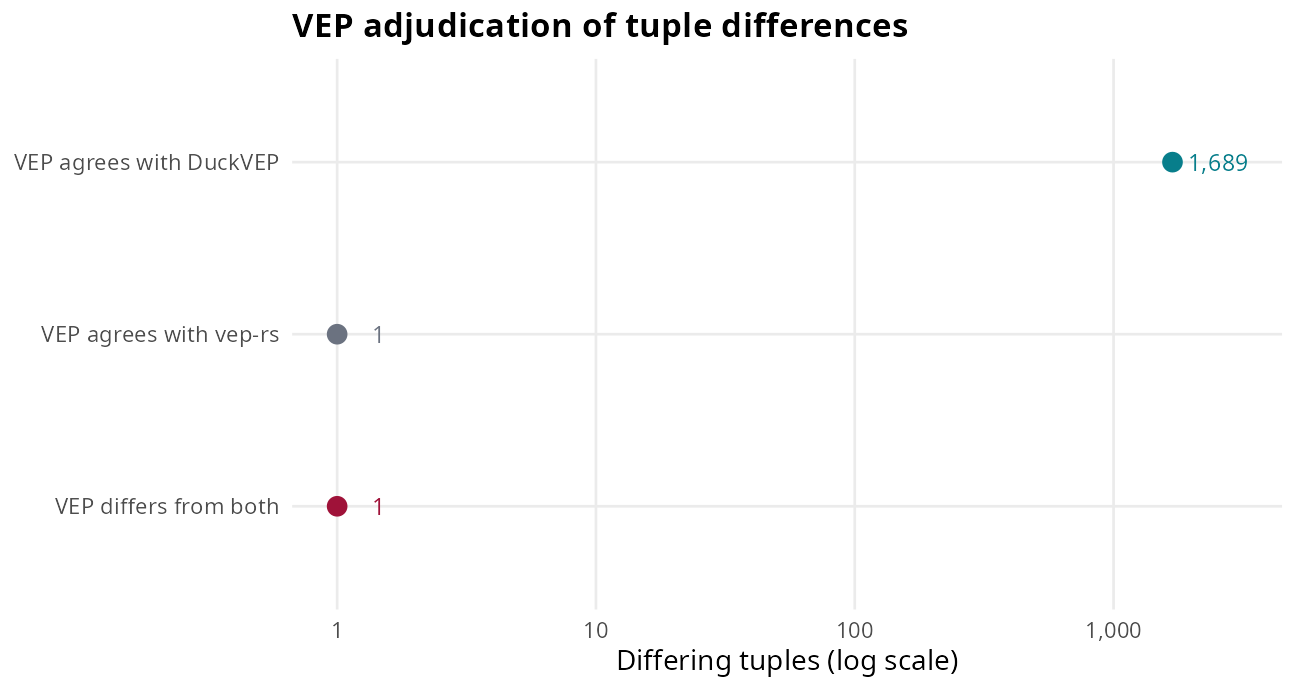

Oracle verdict counts for the 1,691 differing tuples. The horizontal count axis is logarithmic.

Oracle verdict counts for the 1,691 differing tuples. The horizontal count axis is logarithmic.

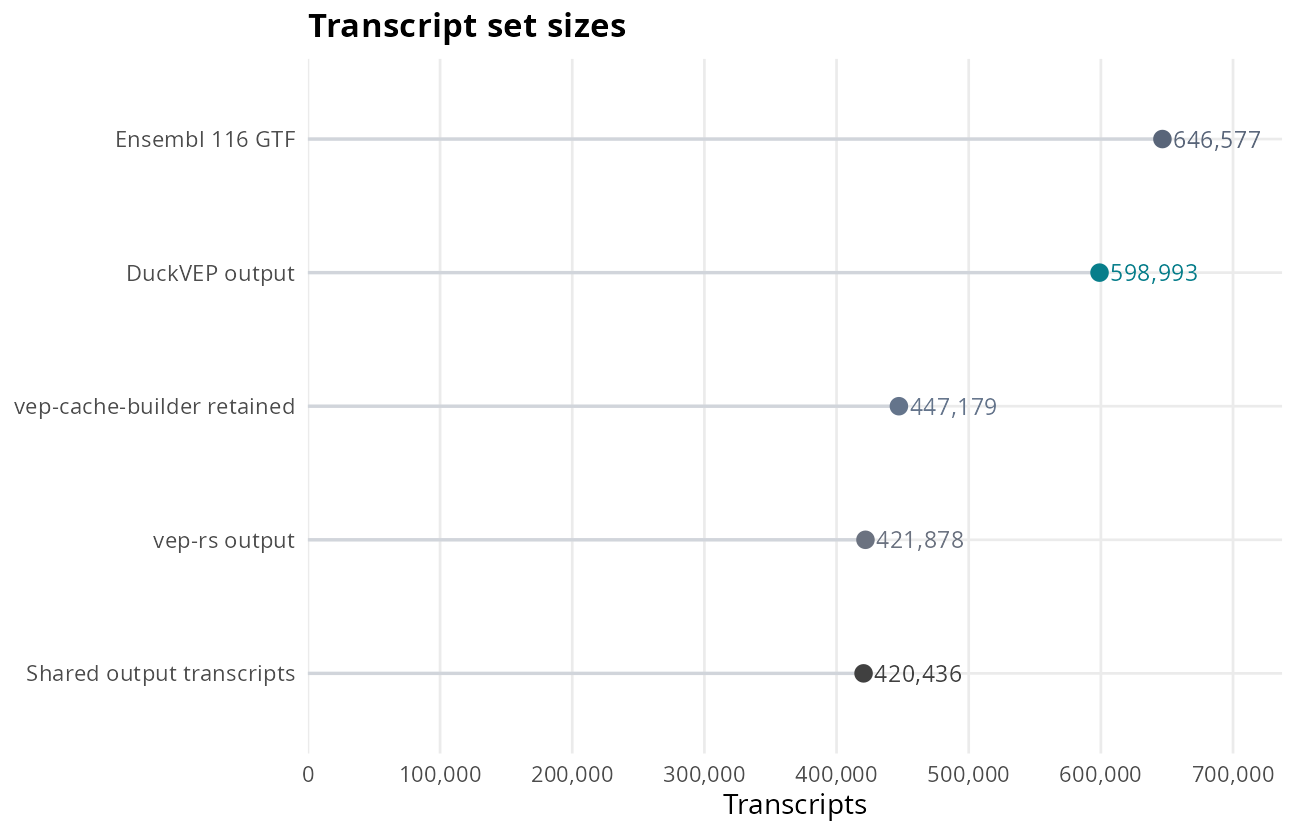

Transcript counts are overlapping set sizes, not disjoint categories. The GTF and cache-builder totals are reported in the archived run analysis; output counts are in adjudication.txt.

Transcript counts are overlapping set sizes, not disjoint categories. The GTF and cache-builder totals are reported in the archived run analysis; output counts are in adjudication.txt.

The archived analysis reports 171,530 lncRNA transcripts among those emitted by DuckVEP and not vep-rs. It did not establish why vep-cache-builder omits transcripts.

Run design and reproduction

Render from the repository root with Rscript benchmarks/scripts/render_benchmarks.R vep_rs.

The paired campaign was measured 2026-10-05 with DuckVEP source revision bbe2ec4d5e9000c38448edb35e0015f35e8b225e. Three cold pairs ran vep-rs first and DuckVEP second, pinned to CPU 19 on an Intel Core i5-13500 (14 cores, 20 threads, 62 GiB; CPU 19 is an E-core with maximum clock 3.5 GHz). The host had other active workloads. Outputs were disk-backed. The median wall, CPU, and peak RSS measurements are 58.09 s, 57.98 s, and 2,778,116 KiB for DuckVEP; 73.26 s, 70.83 s, and 2,896,592 KiB for vep-rs.

DuckVEP’s timed process includes extension load, model snapshot restore, VCF read and coordinate sort, annotation, and Parquet output. Its rich relation contains consequences, impact, cDNA, CDS and protein positions, amino acids, and NMD fields. vep-rs uses its 0.3.1 release binary with --fork 1 and emits VEP tab text. DuckVEP’s model is built from the Ensembl core database; the vep-rs JSON cache was built from Homo_sapiens.GRCh38.116.gtf.gz. The release binary’s CPU time matched a target-cpu=native build, and the release already requires AVX2; vep-rs has no hand-written SIMD, with AVX2 use coming from the compiler flag and dependencies.

The executable oracle is Ensembl VEP 116 using --gtf with the same GTF. The benchmark inputs are GIAB HG002 v4.2.1 GRCh38 split to one ALT allele per site. The tools emitted 47,278,065 DuckVEP Parquet rows and 36,258,238 vep-rs text rows; these output contracts differ. run_receipt.tsv records executable and runner hashes; preparation.receipt.tsv and preparation_outputs.sha256 bind the input paths, input content hashes, and generated snapshot/mappings. Those paths are measurement locators.

To reproduce, provide DUCKVEP_READER_EXT, DUCKVEP_MODEL, VEP_RS_CACHE, VEP_GTF, and VEP_FASTA, plus VEP_RS_DIR or VEP_RS_BIN, as described in benchmark_duckvep_vep_rs.sh. Set BENCH_OUT to the intended output filesystem; the runner default is memory-backed /dev/shm/duckvep-vep-rs. Then run:

benchmark_duckvep_vep_rs.sh --vcf INPUT.vcf.gz --work WORKDIR --threads 1 --runs 3 --cpu-affinity 19

VEP_RS_CACHE must point to the species/version directory containing transcripts/ (homo_sapiens/116_GRCh38 for this run), not its parent. A successful vep-rs exit with no annotation rows is rejected by the runner. --fork 1 and SET threads=1 limit worker counts; only --cpu-affinity binds processes to CPU 19. Without affinity, neither tool is pinned. With --threads 16, that thread setting is measured before the one-thread comparison, using the same affinity for both tools and the query probe. Preparation is reused only when its source paths and SHA-256 hashes match and generated files pass their recorded SHA-256 checks.

DUCKDB_BIN, TIME_BIN, TASKSET_BIN, VEP_RS_BIN, and VEP_BIN select alternate executables; TIME_BIN must support GNU time’s -f, -a, and -o options. VEP_PREFIX can add the adjudicating VEP environment to PATH. The raw timings.tsv, stage_timings.tsv, adjudication.txt, run_receipt.tsv, and run README retain the measurement record.

Agreement details and residual witnesses

A tuple is (allele, transcript, set of consequence terms). Counts use only the 420,436 transcripts emitted by both tools. Each tool has 34,148,222 tuples; 34,146,531 agree and 1,691 differ. VEP ran on 1,291 sites where the tools differed. Its verdicts were 1,689 tuples agreeing with DuckVEP, one agreeing with vep-rs, and one differing from both.

On those 1,291 sites VEP emitted 41,249 tuples. DuckVEP matches 41,085 and has no rows absent from VEP; 162 VEP rows are for transcripts not held by DuckVEP’s database-built model. vep-rs matches 38,109 and lacks 1,443 VEP rows; neither tool emits rows absent from VEP in this replay. The largest disagreement class is 1,317 tuples called synonymous by DuckVEP and missense by vep-rs; other differences include stop gained or stop retained terms present on one side only.

The two remaining mismatches have two-record witnesses:

Diagnostic SQL reproduces DuckVEP’s rows from the runner snapshot and mappings. Load the extension and set SQL variable comparison_dir before running it from the repository root. Direct VEP 116 reruns reproduce both oracle rows. The differing sequence contexts are identified; VEP’s internal shifted allele operands remain unresolved.

Historical memory-backed measurements

A separate campaign dated 2026-10-04 used DuckVEP revision 125e34a on the same i5-13500 with outputs on memory-backed storage. At 16 threads, median wall times were 6.84 s for DuckVEP and 9.39 s for vep-rs; CPU time was 71 s and 105 s, and peak RSS was 4.9 GiB and 3.5 GiB. DuckVEP wrote 47,278,065 rows (142 MB Parquet); vep-rs wrote 36,258,238 rows (4.17 GB text). The output formats and row counts differ. DuckVEP’s resident memory includes a 1.3 GiB model file mapping shared between processes.

The separate one-thread measurements were DuckVEP: 33.5 s wall, 33.5 s CPU, 2.6 GiB peak RSS; vep-rs --fork 1: 30.0 s wall, 53.3 s CPU, 3.1 GiB peak RSS; vep-rs pinned to one core: 34.4 s wall and 34.4 s CPU. The pinned vep-rs and DuckVEP timings came from separate invocations and are not a controlled one-core pair. The 33.53 s and 102.86 s timings recorded for separate invocations also do not establish a controlled comparison. vep-rs 0.3.1 did not accept --parquet, so the output formats are not identical.

A historical DuckVEP single-thread query probe, without CPU affinity, measured compact count 3.4 s, rich count 8.0 s, rich-column touch 11.4 s, rich joined Parquet 30.3 s, and compact Parquet 15.5 s. Extension setup and model restore were outside these query timers; the query variants are not additive.

vep-rs’s published concordance describes release 115 and 1.18 billion variants. HGVS, regulatory features, and plugins are outside this comparison. Tuples on which these tools agree were not checked against VEP; the oracle adjudication is limited to the disagreement sites in this one genome.

The R Markdown source renders this report and its figures from the checked-in receipts:

rmarkdown::render("benchmarks/benchmark_duckvep_vep_rs.Rmd",
  output_file = "benchmark_duckvep_vep_rs.md", output_dir = "benchmarks",
  knit_root_dir = normalizePath("."), envir = new.env(parent = globalenv()))
