Haplotypes with indels

Source: 20efcf2af33b38c5be7596e2db7b243a3be53c47. Nearest same-input baseline: e3ec6d231cc7e5c769685761a4739c8fcffc30ff. All 51 timed observations are retained in the checkpoint data, including every full-output fingerprint. The cross-revision full-output equality check failed. None of these rows was appended to the existing benchmark history, and its equality guard remains unchanged. Rendering this diagnostic report is not a passing benchmark-promotion verdict.

Timing and output identity

Points show three-pass medians; ranges show the observed minima and maxima. Source labels distinguish the same-input baseline and diagnostic checkpoint. These are timing records, not paired speedup claims: the singleton SQL modes have unequal full-output fingerprints across revisions.

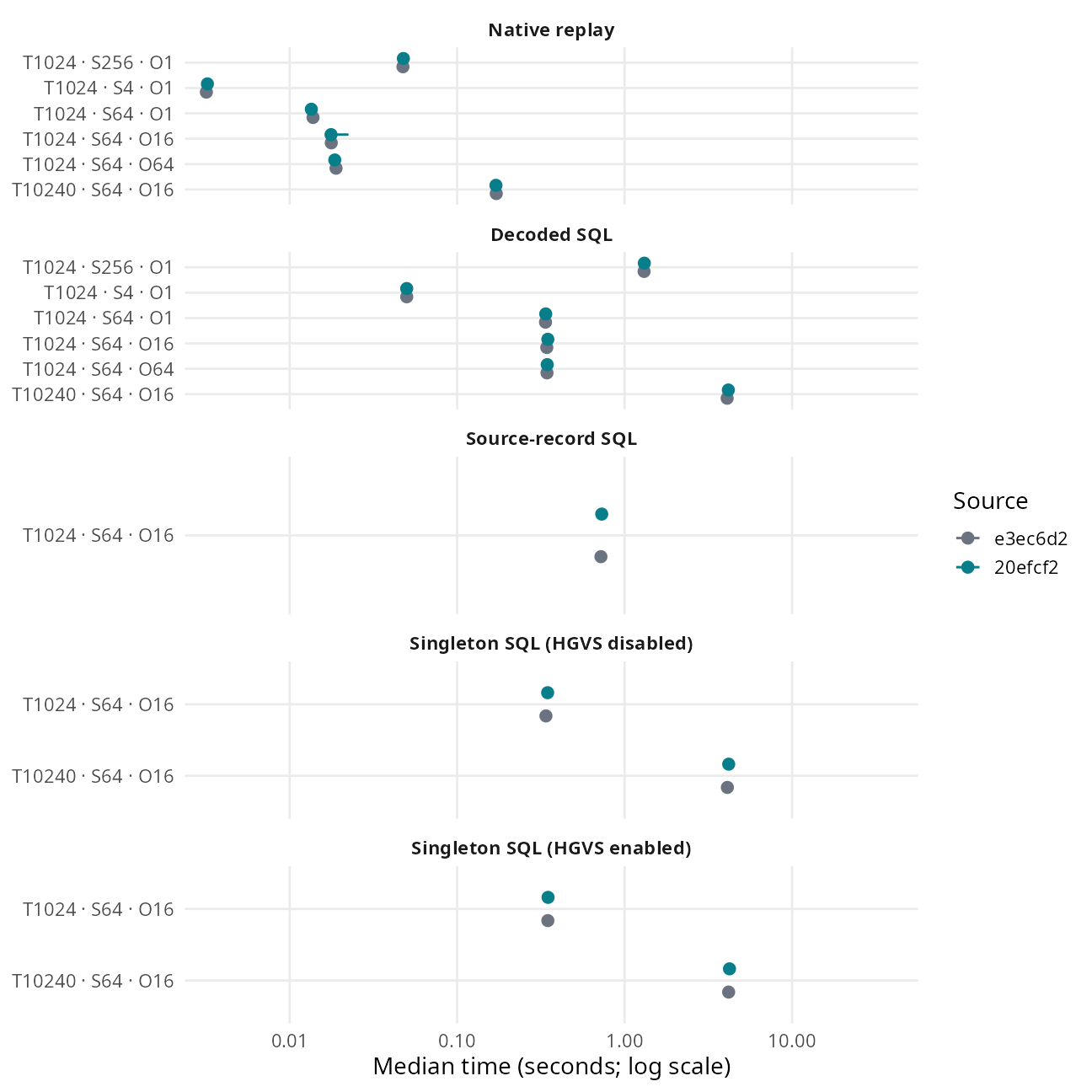

Same-input benchmark timings by source revision and mode; output identity is shown below.

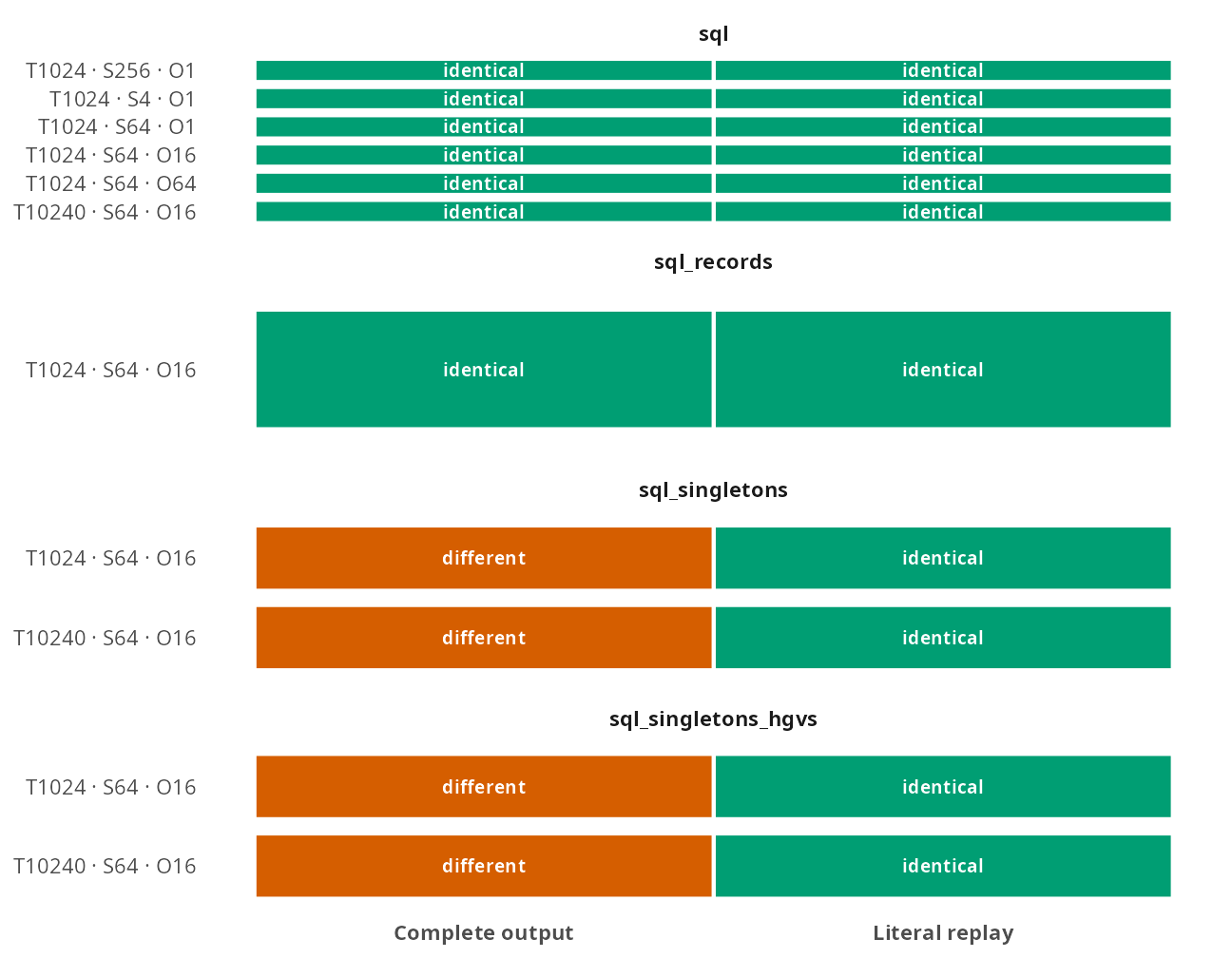

Across-revision equality of literal-replay and complete-output fingerprints.

The equality grid compares recorded fingerprints within matching workloads. A matching literal-replay projection does not imply equality of the complete output contract.

Workload and execution

The benchmark driver uses the same registered 180-base canonical-DNA CDS, four original ALT events and diploid sample templates as the baseline report. It checks complete carrier multisets, sequences, edit provenance, corrupted inputs and full output fingerprints within each mode. The singleton HGVS check compares independent and phased DuckHTS paths; it is not an independent VEP oracle.

Both campaigns ran on the Intel i5-13500 with DuckDB 1.5.3, one thread pinned to CPU 2, three fresh-process timed passes and separate correctness workers. The current extension was rebuilt from a clean tracked checkout with HTSlib distclean; its SHA-256 is a5dceecf83f96b484339fec50372953465dc0543199508bb368df34a9c647f13. Retained receipts identify source files, native bridge, extension, registered inputs, derived FASTA/index and every worker artifact. They are local source-bound records, not signed CI attestations.

Native timing covers initialized ordered-feed replay and a count sink. SQL timing covers full table materialization, including preparation, sort, replay, sequence differences, local coding facts and all nested output. Model/input staging and post-query fingerprints are outside timing. Whole-process maximum RSS includes the R/DuckDB host, setup, warm-up, output and post-query checks.

All measured configurations

All measured medians and process RSS values
transcripts samples overlap mode baseline_median_s baseline_min_s baseline_max_s current_median_s current_min_s current_max_s current_max_rss_mib full_output_equal replay_equal
1024 256 1 native 0.0475 0.0457 0.0475 0.0478 0.0467 0.0487 73.8516 NA NA
1024 256 1 sql 1.3070 1.3030 1.3070 1.3110 1.3110 1.3170 957.9570 TRUE TRUE
1024 4 1 native 0.0032 0.0032 0.0032 0.0032 0.0032 0.0034 73.8516 NA NA
1024 4 1 sql 0.0500 0.0490 0.0520 0.0500 0.0500 0.0510 218.0352 TRUE TRUE
1024 64 1 native 0.0138 0.0138 0.0143 0.0135 0.0132 0.0136 73.6953 NA NA
1024 64 1 sql 0.3370 0.3360 0.3410 0.3380 0.3380 0.3500 376.6367 TRUE TRUE
1024 64 16 native 0.0177 0.0177 0.0178 0.0177 0.0171 0.0221 73.6992 NA NA
1024 64 16 sql 0.3430 0.3400 0.3440 0.3480 0.3470 0.3510 378.4023 TRUE TRUE
1024 64 16 sql_records 0.7220 0.7200 0.7260 0.7300 0.7290 0.7370 611.9102 TRUE TRUE
1024 64 16 sql_singletons 0.3390 0.3360 0.3420 0.3470 0.3430 0.3570 408.9727 FALSE TRUE
1024 64 16 sql_singletons_hgvs 0.3480 0.3460 0.3480 0.3490 0.3460 0.3620 409.5078 FALSE TRUE
1024 64 64 native 0.0189 0.0183 0.0190 0.0186 0.0182 0.0190 73.8555 NA NA
1024 64 64 sql 0.3440 0.3430 0.3460 0.3450 0.3440 0.3470 377.8203 TRUE TRUE
10240 64 16 native 0.1713 0.1687 0.1732 0.1705 0.1693 0.1719 73.6992 NA NA
10240 64 16 sql 4.0950 4.0660 4.1270 4.1620 4.1350 4.1630 2137.1797 TRUE TRUE
10240 64 16 sql_singletons 4.1070 4.1070 4.1100 4.1820 4.1650 4.1860 2190.9141 FALSE TRUE
10240 64 16 sql_singletons_hgvs 4.1790 4.1700 4.1870 4.2270 4.2160 4.2290 2191.0586 FALSE TRUE

NA marks the native count sink, which has no serialized SQL-row fingerprint. Counts, input identities, output contracts, sequence bytes and JSON byte lengths match between revisions. The unequal singleton fingerprints mean those timings are same-input, different-output measurements, not identical-output work. Matching byte lengths do not establish matching values.

Input and output denominators by measured configuration
transcripts samples overlap mode input_records projected_events input_calls input_physical_records input_record_sample_calls input_candidate_sample_rows output_leaves output_carriers cds_bytes protein_bytes json_bytes
1024 256 1 native 4096 4096 1048576 NA NA NA 3072 458752 552960 184320 NA
1024 256 1 sql NA NA NA NA NA NA 3072 458752 552960 184320 35028730
1024 4 1 native 4096 4096 16384 NA NA NA 3072 7168 552960 184320 NA
1024 4 1 sql NA NA NA NA NA NA 3072 7168 552960 184320 5142266
1024 64 1 native 4096 4096 262144 NA NA NA 3072 114688 552960 184320 NA
1024 64 1 sql NA NA NA NA NA NA 3072 114688 552960 184320 12185338
1024 64 16 native 256 4096 262144 NA NA NA 3072 114688 552960 184320 NA
1024 64 16 sql NA NA NA NA NA NA 3072 114688 552960 184320 12157566
1024 64 16 sql_records NA NA NA 256 16384 262144 4096 131072 737280 245760 14151208
1024 64 16 sql_singletons NA NA NA 256 16384 262144 4096 65536 737280 244736 9006696
1024 64 16 sql_singletons_hgvs NA NA NA 256 16384 262144 4096 65536 737280 244736 9014888
1024 64 64 native 64 4096 262144 NA NA NA 3072 114688 552960 184320 NA
1024 64 64 sql NA NA NA NA NA NA 3072 114688 552960 184320 12141566
10240 64 16 native 2560 40960 2621440 NA NA NA 30720 1146880 5529600 1843200 NA
10240 64 16 sql NA NA NA NA NA NA 30720 1146880 5529600 1843200 121850254
10240 64 16 sql_singletons NA NA NA 2560 163840 2621440 40960 655360 7372800 2447360 90229832
10240 64 16 sql_singletons_hgvs NA NA NA 2560 163840 2621440 40960 655360 7372800 2447360 90311752

Retained output differences

All three measured passes agree within each mode. Across revisions, 12 of 51 timed rows have unequal fingerprints: the two singleton modes at both transcript counts, with three passes each. Literal replay fingerprints agree. The complete observations below retain the unequal hash values; no field was normalized away to obtain a match.

Unequal fingerprint values by configuration
transcripts samples overlap mode pass field baseline_value current_value
1024 64 16 sql_singletons 1 xor_hash 126084453999582039 700836657811329227
1024 64 16 sql_singletons_hgvs 1 xor_hash 2000475952795925397 6726181131062349297
10240 64 16 sql_singletons 1 xor_hash 8822573126786218751 13918678999014856763
10240 64 16 sql_singletons_hgvs 1 xor_hash 2105622761814596718 11764073491056183881
1024 64 16 sql_singletons 1 sum_hash 37582730671888802355371 37573251854262826388211
1024 64 16 sql_singletons_hgvs 1 sum_hash 37824893397053031140415 37715148776440476629199
10240 64 16 sql_singletons 1 sum_hash 378298692363800329214139 377624590454045657951587
10240 64 16 sql_singletons_hgvs 1 sum_hash 378148534262711101761592 378079038706658146159825
1024 64 16 sql_singletons 1 local_so_xor_hash 654628605784468392 2335123865651189926
1024 64 16 sql_singletons_hgvs 1 local_so_xor_hash 654628605784468392 2335123865651189926
10240 64 16 sql_singletons 1 local_so_xor_hash 14224601500847809748 5814153375303733475
10240 64 16 sql_singletons_hgvs 1 local_so_xor_hash 14224601500847809748 5814153375303733475
1024 64 16 sql_singletons 1 local_so_sum_hash 37446723966248878265056 37469739201441226011254
1024 64 16 sql_singletons_hgvs 1 local_so_sum_hash 37446723966248878265056 37469739201441226011254
10240 64 16 sql_singletons 1 local_so_sum_hash 377356556873241402705208 376754957532195857701877
10240 64 16 sql_singletons_hgvs 1 local_so_sum_hash 377356556873241402705208 376754957532195857701877
1024 64 16 sql_singletons 1 hgvs_so_xor_hash 14345163728266764224 4389172685361975006
1024 64 16 sql_singletons_hgvs 1 hgvs_so_xor_hash 4662359414007789427 2986948762521831407
10240 64 16 sql_singletons 1 hgvs_so_xor_hash 17221334368169699363 18088277829535065931
10240 64 16 sql_singletons_hgvs 1 hgvs_so_xor_hash 453159649544162334 17894173913969220412
1024 64 16 sql_singletons 1 hgvs_so_sum_hash 37210505766262944422094 37319589750075617092114
1024 64 16 sql_singletons_hgvs 1 hgvs_so_sum_hash 37310727840131450206907 37380943966290453737923
10240 64 16 sql_singletons 1 hgvs_so_sum_hash 375900478728341038687991 376659840003214785142417
10240 64 16 sql_singletons_hgvs 1 hgvs_so_sum_hash 379046938936219164021386 379285744703700591171964
1024 64 16 sql_singletons 1 non_hgvs_xor_hash 6052207445973056023 18003099339576597538
1024 64 16 sql_singletons_hgvs 1 non_hgvs_xor_hash 6052207445973056023 18003099339576597538
10240 64 16 sql_singletons 1 non_hgvs_xor_hash 9551608422294852071 2779620574718580229
10240 64 16 sql_singletons_hgvs 1 non_hgvs_xor_hash 9551608422294852071 2779620574718580229
1024 64 16 sql_singletons 1 non_hgvs_sum_hash 37933509573515682488189 38315864159327482580440
1024 64 16 sql_singletons_hgvs 1 non_hgvs_sum_hash 37933509573515682488189 38315864159327482580440
10240 64 16 sql_singletons 1 non_hgvs_sum_hash 377195884730473591625225 378704497758867019612841
10240 64 16 sql_singletons_hgvs 1 non_hgvs_sum_hash 377195884730473591625225 378704497758867019612841

A retained four-event, one-transcript reproduction isolates the deletion GC>G at CDS position 67: its block local_consequence_mask changes from 8,388,608 (frameshift) to 8,396,800 (frameshift plus raw missense). Every other field in those four complete rows is unchanged. The physical deletion changes local GCT to partial GT, giving peptide operands A and X. The documented local-block contract evaluates raw coding predicates without an independent source event’s uploaded-feature class gates. See ERRATA.md for the pinned predicate evidence and its limits. The compact witness preserves both complete native outputs and all original files from the exact pinned-VEP observation, including source, observation scripts, commands, receipts and failed-attempt diagnostics. Its 38 files are stored as byte-exact base64 payloads with per-file hashes. Rendering verifies the bundle identity, the complete four-row difference and the independent raw-predicate observation. It is unsigned diagnostic evidence.

The complete-output audit retains all eight baseline/current Parquet relations for the two singleton modes at both transcript counts. Each untimed capture matches all 27 non-timing result fields from its original correctness worker and all three timed workers, including every full-output fingerprint; Parquet round trips preserve those metrics and types. Rendering verifies the pinned bundle and receipt identities, binds the retained metrics to both ledgers, and checks the exact workload configuration. The original-input capsule preserves 32 original worker jobs, four benchmark receipts, their four FASTA/index pairs, and both registered fixtures. Each original receipt is bound to its capture and ledger; every job’s actual bytes must match that receipt, and the correctness job must also match its capture’s input hash. Decoded jobs must contain the exact registered reference and event table. Their complete semantic fields agree across revisions and passes, with each pass’s correctness flag checked separately; only named binary, output and reference-file paths are excluded from that equality. Extension identities are checked against their own revision, not equated across revisions. The driver remains independently pinned, and retained FASTA/index bytes must match both receipt layers. Original paths are identifiers only: rendering does not reopen historical files. Input controls reject missing, malformed or altered job hashes and self-consistently rehashed jobs with changed events or configuration. Rendering then reruns the complete typed, exact-key comparison.

Complete-output keyed audit counts
transcripts mode joined_rows missing_keys changed_rows changed_other_events unexplained_rows
1024 sql_singletons 4096 0 1024 0 0
1024 sql_singletons_hgvs 4096 0 1024 0 0
10240 sql_singletons 40960 0 10240 0 0
10240 sql_singletons_hgvs 40960 0 10240 0 0

Across 90112 keyed row pairs, 22528 differ only in the declared deletion mask above. There are no missing keys, changes to other events or unexplained field changes. The audit checks the full expected transcript/event inventory and deletion geometry, not only aggregate hashes. Its seven corruption controls reject NULL blocks, count-preserving key shifts, altered integer types, changed protein sequence, omitted or duplicate rows and an incorrect deletion mask; rendering reruns them. The bundle retains the observation/comparison scripts, receipts, complete corrupted inputs and original logs. These remain unsigned local observations. The outputs are still unequal: explaining their difference does not turn these measurements into identical-output work or change the historical promotion guard.

Three passes on one shared machine do not establish statistical significance, a causal performance effect or a general absence of regression. This fixture does not measure N-rich annotation, whole-haplotype consequences or compound HGVS.

Reproduction

Use the clean extension-receipt procedure in the baseline report, then run benchmarks/duckvep_haplotypes.R with --passes 3 --cpu 2 and these six workloads:

Workload arguments for reproducing each configuration
transcripts samples overlap modes
1024 256 1 native,sql
1024 4 1 native,sql
1024 64 1 native,sql
1024 64 16 native,sql,sql_records,sql_singletons,sql_singletons_hgvs
1024 64 64 native,sql
10240 64 16 native,sql,sql_singletons,sql_singletons_hgvs

Pass --extension-receipt PATH and the listed --transcripts, --samples, --overlap and --modes to each invocation. Preserve every result and receipt; do not append a campaign that fails the historical full-output check.

Canonical workload at the translation checkpoints

Sources 52ce78513b3f5f7c2a46fe82dc44dd458333092b, de3d008004f615c198a422a42a773bd7c9de0b70, d6d188da54f0a0cf97ec74244243ebad251194f5, a4ab9f516275b4c2d1178ddded5da6fbaeccf396 and 6e1a1de9e6cf34dae4dc9f58f27817ca4dd7e8e0 each use the nearest recorded identical workload as their timing baseline: 20efcf2af33b38c5be7596e2db7b243a3be53c47 for 52ce785, 52ce785 for de3d008, de3d008 for d6d188d, and d6d188d for a4ab9f5; 6e1a1de compares with a4ab9f5. The workload has 1,024 transcripts, 64 samples, 16 overlapping transcripts, 256 physical events and 262,144 candidate/sample input rows. All six runs use one thread on CPU 2, DuckDB 1.5.3 and three fresh-process timed passes. No DuckHTS test or conformance jobs ran concurrently with the 52ce785 timers. No DuckHTS build, test, conformance or diagnostic jobs overlapped the d6d188d timers. The same isolation applies to a4ab9f5, measured from 02:53:38 to 02:54:19 +0200 on September 11, 2026. The de3d008 campaign ran from 00:59:19 to 00:59:59 +0200 on September 11, 2026; a small read-only classification/oracle diagnostic completed at 01:00:01, so concurrent diagnostic activity cannot be excluded. Other shared-host activity was not controlled. The 6e1a1de driver ran from 21:28:02 to 21:28:42 +0200 on September 12, 2026, after the build, test and conformance jobs finished. No other local DuckHTS builds, tests, conformance, benchmarks or diagnostic computations overlapped its timers; read-only GitHub status and clock checks continued.

Per-revision translation checkpoint timings
revision baseline_revision mode input_candidate_sample_rows output_leaves output_carriers baseline_median_s checkpoint_median_s checkpoint_max_rss_mib
52ce785 20efcf2 native 262144 3072 114688 0.017662 0.017174 73.69531
52ce785 20efcf2 sql 262144 3072 114688 0.348000 0.346000 378.93750
52ce785 20efcf2 sql_records 262144 4096 131072 0.730000 0.731000 611.99219
52ce785 20efcf2 sql_singletons 262144 4096 65536 0.347000 0.343000 411.19531
52ce785 20efcf2 sql_singletons_hgvs 262144 4096 65536 0.349000 0.353000 408.82812
de3d008 52ce785 native 262144 3072 114688 0.017174 0.017235 73.69922
de3d008 52ce785 sql 262144 3072 114688 0.346000 0.344000 379.13672
de3d008 52ce785 sql_records 262144 4096 131072 0.731000 0.734000 612.45703
de3d008 52ce785 sql_singletons 262144 4096 65536 0.343000 0.343000 409.75391
de3d008 52ce785 sql_singletons_hgvs 262144 4096 65536 0.353000 0.348000 409.91797
d6d188d de3d008 native 262144 3072 114688 0.017235 0.017650 73.85156
d6d188d de3d008 sql 262144 3072 114688 0.344000 0.347000 378.92188
d6d188d de3d008 sql_records 262144 4096 131072 0.734000 0.738000 611.44922
d6d188d de3d008 sql_singletons 262144 4096 65536 0.343000 0.342000 411.05078
d6d188d de3d008 sql_singletons_hgvs 262144 4096 65536 0.348000 0.348000 410.01953
a4ab9f5 d6d188d native 262144 3072 114688 0.017650 0.016827 73.85547
a4ab9f5 d6d188d sql 262144 3072 114688 0.347000 0.346000 378.33203
a4ab9f5 d6d188d sql_records 262144 4096 131072 0.738000 0.728000 611.23828
a4ab9f5 d6d188d sql_singletons 262144 4096 65536 0.342000 0.344000 408.10938
a4ab9f5 d6d188d sql_singletons_hgvs 262144 4096 65536 0.348000 0.348000 408.94922
6e1a1de a4ab9f5 native 262144 3072 114688 0.016827 0.017450 73.69922
6e1a1de a4ab9f5 sql 262144 3072 114688 0.346000 0.344000 378.75000
6e1a1de a4ab9f5 sql_records 262144 4096 131072 0.728000 0.734000 612.30859
6e1a1de a4ab9f5 sql_singletons 262144 4096 65536 0.344000 0.340000 409.71094
6e1a1de a4ab9f5 sql_singletons_hgvs 262144 4096 65536 0.348000 0.348000 409.24219

Each checkpoint’s 15 matched rows have identical non-timing result fields, including every SQL full-output fingerprint, output denominator and native workspace/count metric. The 75 checkpoint observations retain individual passes. The 525-file evidence capsule retains all six runs’ original worker jobs, results, logs, process-time reports, benchmark receipts and FASTA/index pairs, all six clean-build receipts, the registered fixtures and the unchanged driver. Rendering verifies every retained file against its receipt before comparing actual jobs and results. It requires complete job semantics to agree across revisions, excluding only the explicitly checked correctness flag and named binary/output/reference-file paths. All 120 result objects are checked for within-mode repeatability; all timed values and RSS measurements are bound to the corresponding ledger rows. Sixty job-mutation controls reject changed sample counts or event alleles. Original paths remain identifiers only; rendering does not reopen historical files.

Compiled extension and native-bridge payloads are not included in this capsule; their identities are retained and checked through the original receipts. The 6e1a1de extension SHA-256 is a53dcb1e1046e8bcb414400c69201d428e96a56a763dfee531fee7dc399bca9d. These are unsigned local source-bound measurements. The historical unequal-output comparison and its complete-output controls remain separate and unchanged. The checkpoint comparisons establish fingerprint equality, not complete typed-row equality.

This canonical table-1 workload measures shared replay and singleton-HGVS paths. It does not measure N-bearing REF, skipped raw ALT or nonstandard-codon-table branches, including the N/U/lowercase REF-slot correction in 6e1a1de. Three passes on a shared host do not establish statistical significance, causality or a general absence of regression. Reproduce with the clean-build receipt procedure above and this command:

Rscript benchmarks/duckvep_haplotypes.R \
  --transcripts 1024 --samples 64 --overlap 16 --passes 3 --cpu 2 \
  --modes native,sql,sql_records,sql_singletons,sql_singletons_hgvs \
  --extension-receipt /tmp/duckhts-foundation-merge.a0qkeM/extension.tsv
