Transcript projection

This measures the complete 23-column result of query(duckvep_transcript_projection_sql(events, annotations, transcripts)) as a DuckDB temporary table. It is the SQL reference, not a fused native implementation. The literal alleles and consequence rows are prepared before timing. The timer includes the macro’s validation, joins, coordinate projection, codon/peptide calculation and complete output materialization. One warm-up precedes the reported measured passes; preparation and full-output verification are excluded from those timings.

The raw FASTA, index and minimal GFF are pinned in r/duckhtsbench under the duckvep-projection workload. projection_fixtures.R derives a forward model, a reverse model, and a three-exon model with two-base CDS phase padding from those inputs. The unchanged independent-event generator adds 1,000 seed-173 random alleles to its targeted witnesses. Only record IDs are relabelled so repeated source alleles retain separate event keys. Each set is repeated eight times with distinct keys. These warm models are a reproducible adapter workload, not a genome-scale annotation or file-ingestion benchmark.

The withheld_sequence workload retains the forward model’s CDS coordinates but supplies NULL CDS sequence, genetic code and flanks, as an importer may do for unsupported sequence edits. It checks that all codon and amino-acid fields remain NULL. This is a benchmark/property case, not a GFF oracle comparison: the reference is available to VEP. It has no identical earlier timing baseline.

Each model/worker-count pair runs in a fresh R process. Peak RSS is the Linux process high-water mark, including model preparation and verification; it is not isolated DuckDB workspace usage. Output bytes are the sum of the UTF-8 lengths of the complete rows serialized as JSON, not DuckDB physical storage size. The SHA-256 covers the schema and every typed row sorted by all columns, including duplicates and NULLs. It must match across passes and worker counts.

Measured materialization

The plots show the latest recorded source revision on one host. Time ranges are observed minima and maxima across three iterations; RSS is the process high-water mark, not isolated operator memory. Worker-count points are shown by case because model and output cardinalities differ across cases.

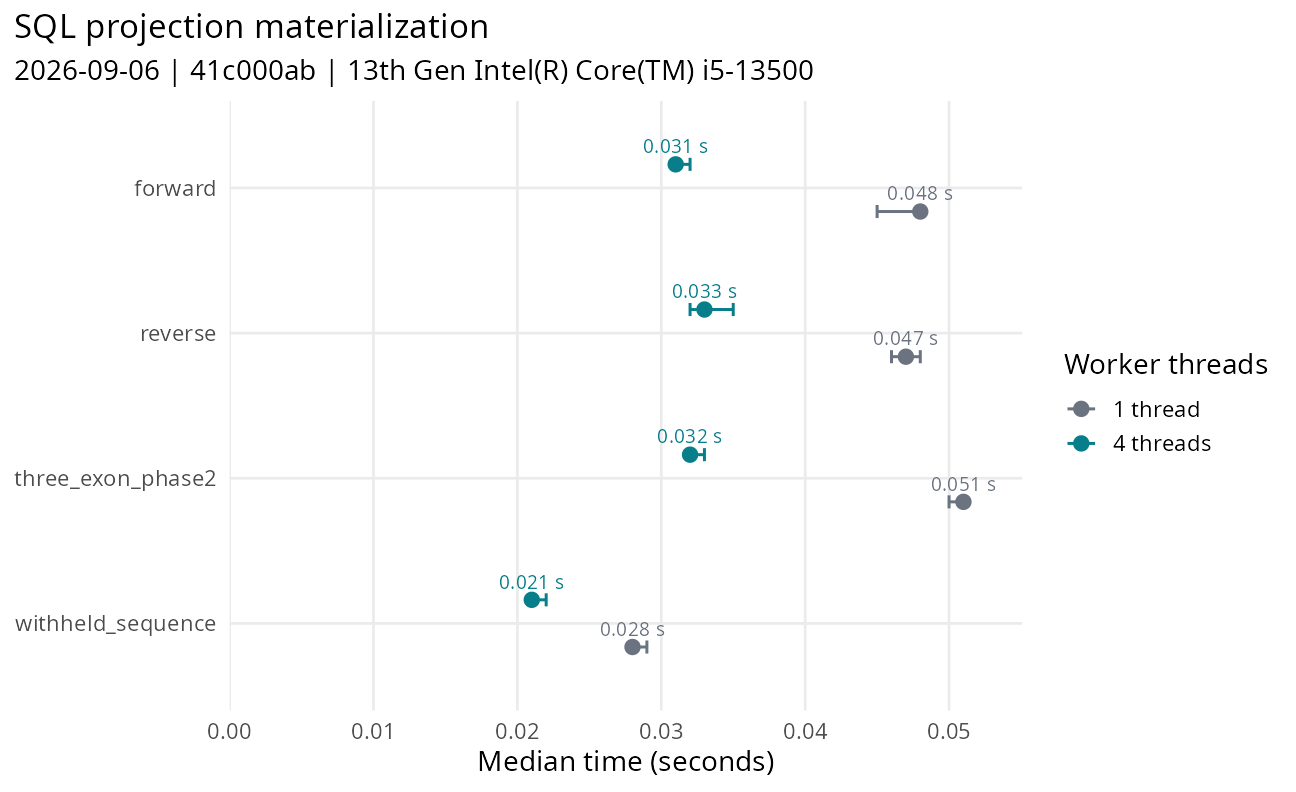

Projection SQL time by case and worker count. Points are medians; ranges are observed minima and maxima.

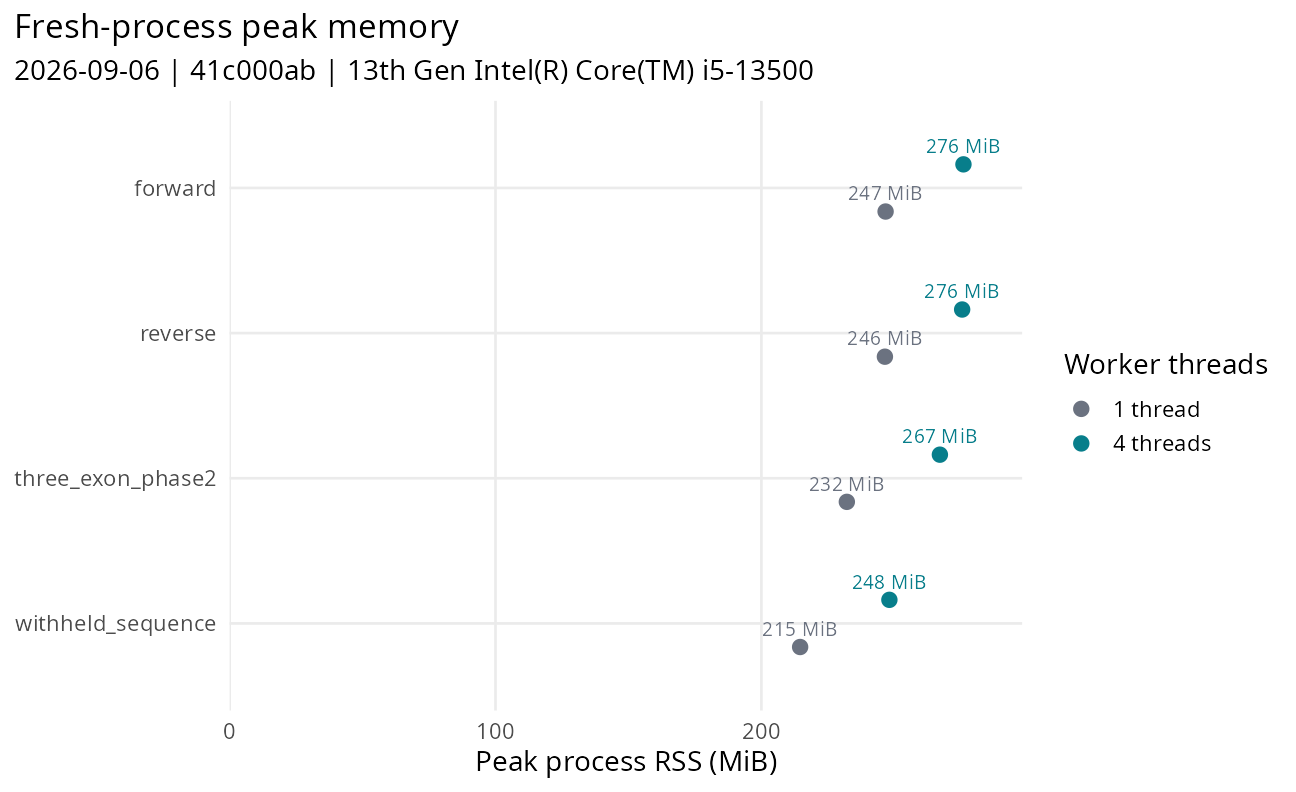

Whole-process peak RSS by case and worker count.
Recorded materialization measurements
source_revision case threads input_alleles expanded_transcript_rows output_rows json_utf8_bytes iterations median_seconds min_seconds max_seconds peak_rss_bytes
f0184155b0fa forward 1 10144 10144 10144 4618058 3 0.045 0.045 0.045 253714432
f0184155b0fa forward 4 10144 10144 10144 4618058 3 0.030 0.030 0.032 285921280
f0184155b0fa reverse 1 10112 10112 10112 4603562 3 0.046 0.045 0.047 258449408
f0184155b0fa reverse 4 10112 10112 10112 4603562 3 0.032 0.031 0.032 288108544
f0184155b0fa three_exon_phase2 1 11112 11112 11112 5056410 3 0.049 0.049 0.051 243851264
f0184155b0fa three_exon_phase2 4 11112 11112 11112 5056410 3 0.033 0.033 0.033 284536832
20b2902c4672 forward 1 10144 10144 10144 4618058 3 0.046 0.045 0.048 256720896
20b2902c4672 forward 4 10144 10144 10144 4618058 3 0.032 0.031 0.032 285495296
20b2902c4672 reverse 1 10112 10112 10112 4603562 3 0.046 0.045 0.047 255000576
20b2902c4672 reverse 4 10112 10112 10112 4603562 3 0.032 0.031 0.032 273793024
20b2902c4672 three_exon_phase2 1 11112 11112 11112 5056410 3 0.050 0.050 0.051 245338112
20b2902c4672 three_exon_phase2 4 11112 11112 11112 5056410 3 0.033 0.032 0.033 283779072
4dd341a8cf61 forward 1 10144 10144 10144 4618058 3 0.049 0.045 0.050 254869504
4dd341a8cf61 forward 4 10144 10144 10144 4618058 3 0.031 0.030 0.031 278728704
4dd341a8cf61 reverse 1 10112 10112 10112 4603562 3 0.047 0.047 0.048 257974272
4dd341a8cf61 reverse 4 10112 10112 10112 4603562 3 0.031 0.030 0.031 279027712
4dd341a8cf61 three_exon_phase2 1 11112 11112 11112 5056410 3 0.049 0.049 0.051 246554624
4dd341a8cf61 three_exon_phase2 4 11112 11112 11112 5056410 3 0.033 0.032 0.034 274251776
41c000abfd72 forward 1 10144 10144 10144 4618058 3 0.048 0.045 0.048 258699264
41c000abfd72 forward 4 10144 10144 10144 4618058 3 0.031 0.031 0.032 289402880
41c000abfd72 reverse 1 10112 10112 10112 4603562 3 0.047 0.046 0.048 258428928
41c000abfd72 reverse 4 10112 10112 10112 4603562 3 0.033 0.032 0.035 288890880
41c000abfd72 three_exon_phase2 1 11112 11112 11112 5056410 3 0.051 0.050 0.051 243417088
41c000abfd72 three_exon_phase2 4 11112 11112 11112 5056410 3 0.032 0.032 0.033 280113152
41c000abfd72 withheld_sequence 1 10144 10144 10144 4589514 3 0.028 0.028 0.029 224993280
41c000abfd72 withheld_sequence 4 10144 10144 10144 4589514 3 0.021 0.021 0.022 260194304

Identity and complete output

Build, input and output identities
source_revision extension_sha256 build_binding machine cpu duckdb_version
1 f0184155b0faa2486937c8b774648ce897c88f2f 420e6d1b14a2831384117d2bec74cba72732769a4349ff9866eeb409d526c7d9 htslib_distclean_make_release Linux 6.8.0-78-generic x86_64 Ubuntu-2404-noble-amd64-base 13th Gen Intel(R) Core(TM) i5-13500 1.5.3
7 20b2902c4672fb0401616a7f09ff8fc0e703909e 420e6d1b14a2831384117d2bec74cba72732769a4349ff9866eeb409d526c7d9 htslib_distclean_make_release Linux 6.8.0-78-generic x86_64 Ubuntu-2404-noble-amd64-base 13th Gen Intel(R) Core(TM) i5-13500 1.5.3
13 4dd341a8cf6124035e326145b9783cfec33767f8 420e6d1b14a2831384117d2bec74cba72732769a4349ff9866eeb409d526c7d9 htslib_distclean_make_release Linux 6.8.0-78-generic x86_64 Ubuntu-2404-noble-amd64-base 13th Gen Intel(R) Core(TM) i5-13500 1.5.3
19 41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 61cef15e2360ab1ca45ef0d55cafdd5d36f47bc98c23580caae6dda14f56452d htslib_distclean_make_release Linux 6.8.0-78-generic x86_64 Ubuntu-2404-noble-amd64-base 13th Gen Intel(R) Core(TM) i5-13500 1.5.3
case input_vcf_sha256 model_gff_sha256 reference_sha256 output_sha256
1 forward 3f79dffd03a5d552e89d15a3eb393c0dd2428ef86cf2f02ce32cf8ddbd1dfe3e 41defe13bfea82d43afc45dd1016c678fc199e634eab215309477ee0bc821685 01d1f025213063a747cb0c53cdcbea67262f32ab1dbdb56aa4131d72142e6d26 aa92aa02feb723b06fea518580209008730d8e7c11992341a1030f787c980e52
3 reverse da6bbb2e1cd5c354a62a831aa37bcbef417dbefcfe4f55260650be03dc72cb7f 7a30f5acd27936582d7a1856e95baea8b92de01e2a6c93312c915a7d16fb8c02 01d1f025213063a747cb0c53cdcbea67262f32ab1dbdb56aa4131d72142e6d26 3f297fdf19db2876b614b01cc77077aa82394810fd38fc17eacc2a686c1f5a3a
5 three_exon_phase2 d7d75e06f61766d825b288f4846e827db1cedd7193c9ce722e59d0bb27d756ae 4e554456fd7f761f54ea25ac8def4bcfd92dc8810e69ea8058e2d7c2917c6dbc 01d1f025213063a747cb0c53cdcbea67262f32ab1dbdb56aa4131d72142e6d26 4c983975b15fe4d200158a9c1d87f25ce874345bdaeba45431679338744e4ce5
25 withheld_sequence 3f79dffd03a5d552e89d15a3eb393c0dd2428ef86cf2f02ce32cf8ddbd1dfe3e 41defe13bfea82d43afc45dd1016c678fc199e634eab215309477ee0bc821685 01d1f025213063a747cb0c53cdcbea67262f32ab1dbdb56aa4131d72142e6d26 1e00b0c3afefe1a03e0f07e0888a5a00eb8a41304d3330ba79acbd8d7a11ba82

The first f0184155b0fa runs establish this complete-contract baseline. Later rows retain that measurement rather than replace it. The following comparison pairs the latest run with its nearest recorded predecessor only when input hash, model, output hash, copy count, worker count, DuckDB version and machine agree.

case threads baseline_revision current_revision baseline_seconds current_seconds current_over_baseline
forward 1 4dd341a8cf61 41c000abfd72 0.049 0.048 0.9795918
forward 4 4dd341a8cf61 41c000abfd72 0.031 0.031 1.0000000
reverse 1 4dd341a8cf61 41c000abfd72 0.047 0.047 1.0000000
reverse 4 4dd341a8cf61 41c000abfd72 0.031 0.033 1.0645161
three_exon_phase2 1 4dd341a8cf61 41c000abfd72 0.049 0.051 1.0408163
three_exon_phase2 4 4dd341a8cf61 41c000abfd72 0.033 0.032 0.9696970

The sorted-stream throughput report instead measures consequence/HGVS output and is not an identical comparator. No fused implementation is measured here. A production-density model and comparison with a future fused implementation remain unmeasured; small timing differences on this warm adapter workload are not proof of a speedup or absence of regression.

Pinned VEP field differential

The separate differential checks all 21 presentation fields, plus the complete event/transcript key set, against VEP 116 JSON. The initial six models add a partial-CDS end, a noncoding first exon and a noncoding transcript to the three timed models. Subsequent runs add later coding-exon phases 1 and 2 after a noncoding first exon. Those runs also require a deliberately wrong phase substitution to fail: VEP display coordinates use the first transcript exon, while CDS sequence padding uses the translation-start exon. Each seed runs the unchanged generator’s targeted cases plus 1,000 random cases; the 128-base differing-allele campaign supplements the default 10-base campaign to exercise longer exon/intron spans. Every physical input record is retained, including duplicate alleles. Missing or duplicate keys, changed fields, and changes to/from NULL must all trip deliberate verifier controls. Actual and expected tables, original and relabelled VCFs, GFFs and oracle JSON have separate hashes in the checked-in CSV; detailed artifacts remain in the run directory.

source_revision case seed max_random_length input_alleles expected_pairs actual_pairs mismatches detected_controls
20b2902c4672fb0401616a7f09ff8fc0e703909e forward 173 10 1268 1268 1268 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e reverse 173 10 1264 1264 1264 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e three_exon_phase2 173 10 1389 1389 1389 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e partial_cds_end 173 10 1385 1385 1385 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e noncoding_first_exon 173 10 1389 1389 1389 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e noncoding 173 10 1198 1198 1198 0 54
20b2902c4672fb0401616a7f09ff8fc0e703909e forward 20260906 10 1268 1268 1268 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e reverse 20260906 10 1264 1264 1264 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e three_exon_phase2 20260906 10 1389 1389 1389 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e partial_cds_end 20260906 10 1385 1385 1385 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e noncoding_first_exon 20260906 10 1389 1389 1389 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e noncoding 20260906 10 1198 1198 1198 0 54
20b2902c4672fb0401616a7f09ff8fc0e703909e forward 173 128 1268 1268 1268 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e reverse 173 128 1264 1264 1264 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e three_exon_phase2 173 128 1389 1389 1389 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e partial_cds_end 173 128 1385 1385 1385 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e noncoding_first_exon 173 128 1389 1389 1389 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e noncoding 173 128 1198 1198 1198 0 54
20b2902c4672fb0401616a7f09ff8fc0e703909e forward 20260906 128 1268 1268 1268 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e reverse 20260906 128 1264 1264 1264 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e three_exon_phase2 20260906 128 1389 1389 1389 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e partial_cds_end 20260906 128 1385 1385 1385 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e noncoding_first_exon 20260906 128 1389 1389 1389 0 62
20b2902c4672fb0401616a7f09ff8fc0e703909e noncoding 20260906 128 1198 1198 1198 0 54
4dd341a8cf6124035e326145b9783cfec33767f8 forward 173 10 1268 1268 1268 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 reverse 173 10 1264 1264 1264 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 three_exon_phase2 173 10 1389 1389 1389 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 partial_cds_end 173 10 1385 1385 1385 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 noncoding_first_exon 173 10 1389 1389 1389 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 noncoding 173 10 1198 1198 1198 0 54
4dd341a8cf6124035e326145b9783cfec33767f8 noncoding_first_exon_phase1 173 10 1389 1389 1389 0 63
4dd341a8cf6124035e326145b9783cfec33767f8 noncoding_first_exon_phase2 173 10 1389 1389 1389 0 63
4dd341a8cf6124035e326145b9783cfec33767f8 forward 20260906 10 1268 1268 1268 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 reverse 20260906 10 1264 1264 1264 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 three_exon_phase2 20260906 10 1389 1389 1389 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 partial_cds_end 20260906 10 1385 1385 1385 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 noncoding_first_exon 20260906 10 1389 1389 1389 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 noncoding 20260906 10 1198 1198 1198 0 54
4dd341a8cf6124035e326145b9783cfec33767f8 noncoding_first_exon_phase1 20260906 10 1389 1389 1389 0 63
4dd341a8cf6124035e326145b9783cfec33767f8 noncoding_first_exon_phase2 20260906 10 1389 1389 1389 0 63
4dd341a8cf6124035e326145b9783cfec33767f8 forward 173 128 1268 1268 1268 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 reverse 173 128 1264 1264 1264 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 three_exon_phase2 173 128 1389 1389 1389 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 partial_cds_end 173 128 1385 1385 1385 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 noncoding_first_exon 173 128 1389 1389 1389 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 noncoding 173 128 1198 1198 1198 0 54
4dd341a8cf6124035e326145b9783cfec33767f8 noncoding_first_exon_phase1 173 128 1389 1389 1389 0 63
4dd341a8cf6124035e326145b9783cfec33767f8 noncoding_first_exon_phase2 173 128 1389 1389 1389 0 63
4dd341a8cf6124035e326145b9783cfec33767f8 forward 20260906 128 1268 1268 1268 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 reverse 20260906 128 1264 1264 1264 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 three_exon_phase2 20260906 128 1389 1389 1389 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 partial_cds_end 20260906 128 1385 1385 1385 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 noncoding_first_exon 20260906 128 1389 1389 1389 0 62
4dd341a8cf6124035e326145b9783cfec33767f8 noncoding 20260906 128 1198 1198 1198 0 54
4dd341a8cf6124035e326145b9783cfec33767f8 noncoding_first_exon_phase1 20260906 128 1389 1389 1389 0 63
4dd341a8cf6124035e326145b9783cfec33767f8 noncoding_first_exon_phase2 20260906 128 1389 1389 1389 0 63
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 forward 173 10 1268 1268 1268 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 reverse 173 10 1264 1264 1264 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 three_exon_phase2 173 10 1389 1389 1389 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 partial_cds_end 173 10 1385 1385 1385 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 noncoding_first_exon 173 10 1389 1389 1389 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 noncoding 173 10 1198 1198 1198 0 54
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 noncoding_first_exon_phase1 173 10 1389 1389 1389 0 63
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 noncoding_first_exon_phase2 173 10 1389 1389 1389 0 63
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 forward 20260906 10 1268 1268 1268 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 reverse 20260906 10 1264 1264 1264 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 three_exon_phase2 20260906 10 1389 1389 1389 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 partial_cds_end 20260906 10 1385 1385 1385 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 noncoding_first_exon 20260906 10 1389 1389 1389 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 noncoding 20260906 10 1198 1198 1198 0 54
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 noncoding_first_exon_phase1 20260906 10 1389 1389 1389 0 63
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 noncoding_first_exon_phase2 20260906 10 1389 1389 1389 0 63
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 forward 173 128 1268 1268 1268 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 reverse 173 128 1264 1264 1264 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 three_exon_phase2 173 128 1389 1389 1389 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 partial_cds_end 173 128 1385 1385 1385 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 noncoding_first_exon 173 128 1389 1389 1389 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 noncoding 173 128 1198 1198 1198 0 54
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 noncoding_first_exon_phase1 173 128 1389 1389 1389 0 63
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 noncoding_first_exon_phase2 173 128 1389 1389 1389 0 63
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 forward 20260906 128 1268 1268 1268 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 reverse 20260906 128 1264 1264 1264 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 three_exon_phase2 20260906 128 1389 1389 1389 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 partial_cds_end 20260906 128 1385 1385 1385 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 noncoding_first_exon 20260906 128 1389 1389 1389 0 62
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 noncoding 20260906 128 1198 1198 1198 0 54
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 noncoding_first_exon_phase1 20260906 128 1389 1389 1389 0 63
41c000abfd72c8c5e005d6dba0ae57b2fa22b3c8 noncoding_first_exon_phase2 20260906 128 1389 1389 1389 0 63

The oracle sources are Ensembl VEP 57ea5c52340acc1f156267f810ad162e26597082 and Variation 2fb834b987ede3824e200197a838ce11e91aeb4b, with the exact package set in test/duckvep/upstream/receipts/vep116_2026-07-22.conda-explicit.txt. GFF input does not import the full core transcript-quality and translation-edit attributes. Positive CDS quality flags and reference peptide edits are therefore tested as SQL model-attribute properties, not represented as positive GFF oracle coverage. Symbolic structural and phased events are outside this function’s literal-allele contract; existing consequence/HGVS/phased acceptance histories and generator settings are unchanged.

These field comparisons do not certify the native consequence masks. A separate diagnostic found supported and unresolved SO disagreements on later partial-CDS models; issue 213 retains the witnesses and full denominators. Presentation equality must not be reported as native consequence conformance.

Reproduce from a clean source revision with an extension build receipt:

source("scripts/benchmark_duckvep_projection.R")
benchmark_duckvep_projection(
  normalizePath("."), "build/release/duckhts.duckdb_extension",
  "benchmarks/data/duckvep_projection.csv",
  extension_receipt = Sys.getenv("DUCKHTS_EXTENSION_RECEIPT")
)
rmarkdown::render("benchmarks/benchmark_duckvep_projection.Rmd",
  knit_root_dir = normalizePath("."))

For each reported seed and maximum length, record conformance separately:

make test-duckvep-projection ARGS="--seed 173 --random-cases 1000 --max-random-length 10 --extension-receipt $DUCKHTS_EXTENSION_RECEIPT --summary-output benchmarks/data/duckvep_projection_conformance.csv"

VEP_PREFIX names the environment matching the checked-in package lock.
